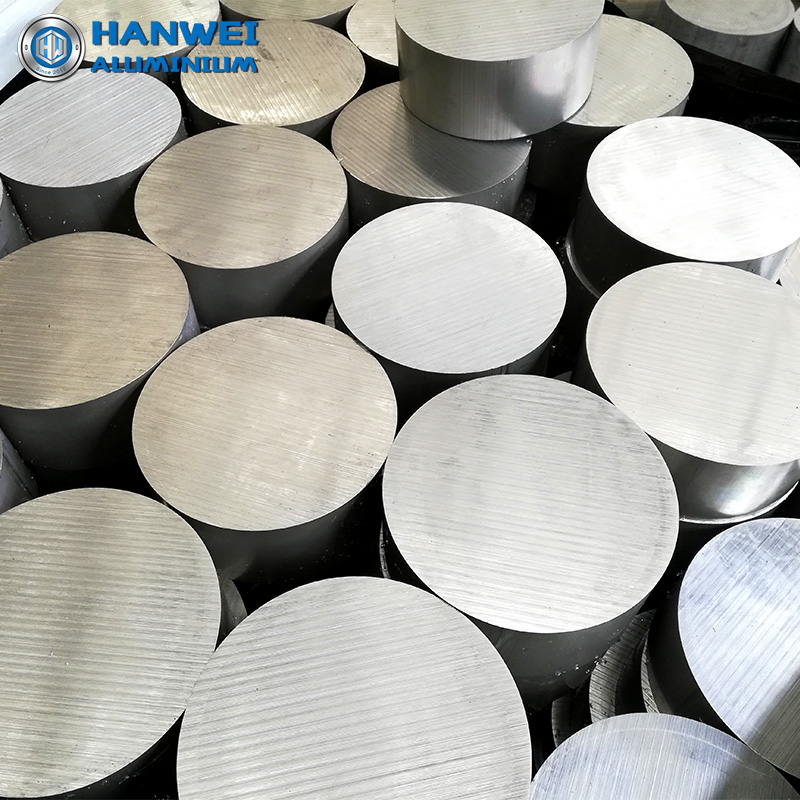

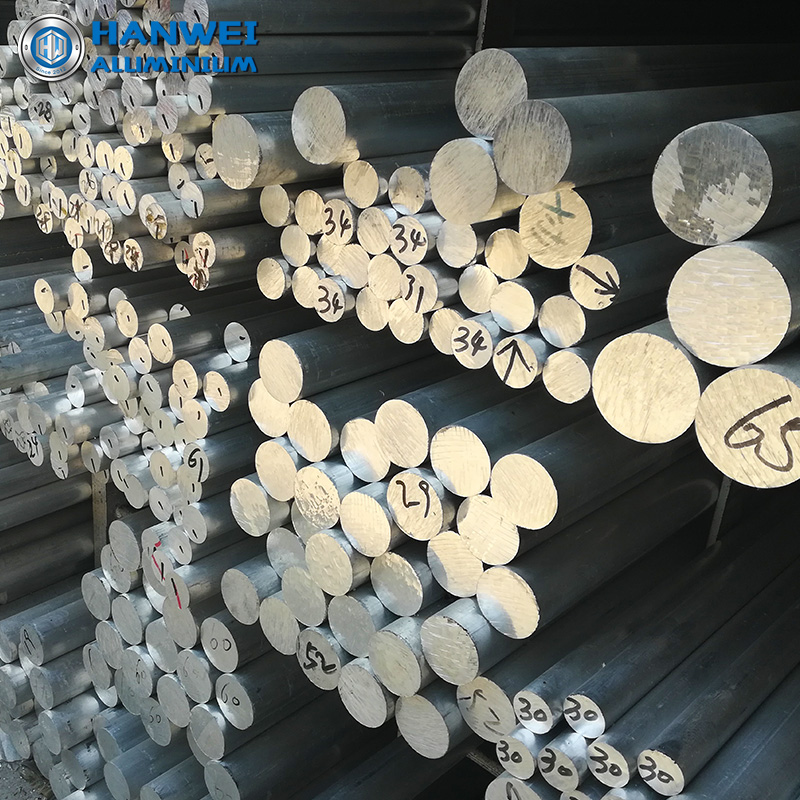

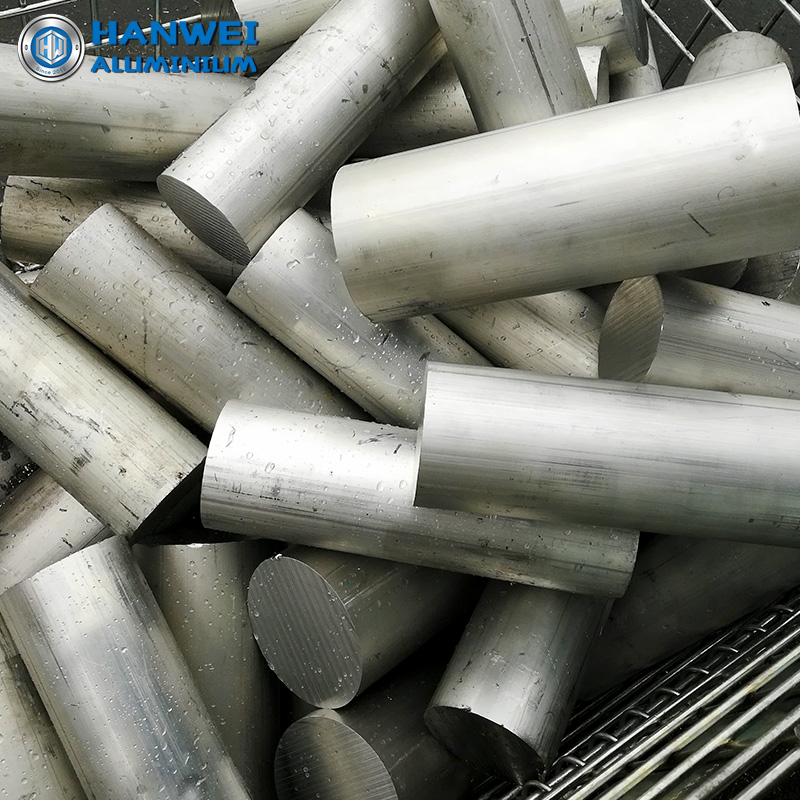

5052 Aluminum Round Bar

◆TYPE: Extruded aluminium rod

◆TEMPER: H112

◆DIAMETER: 8-200mm (ready stock)

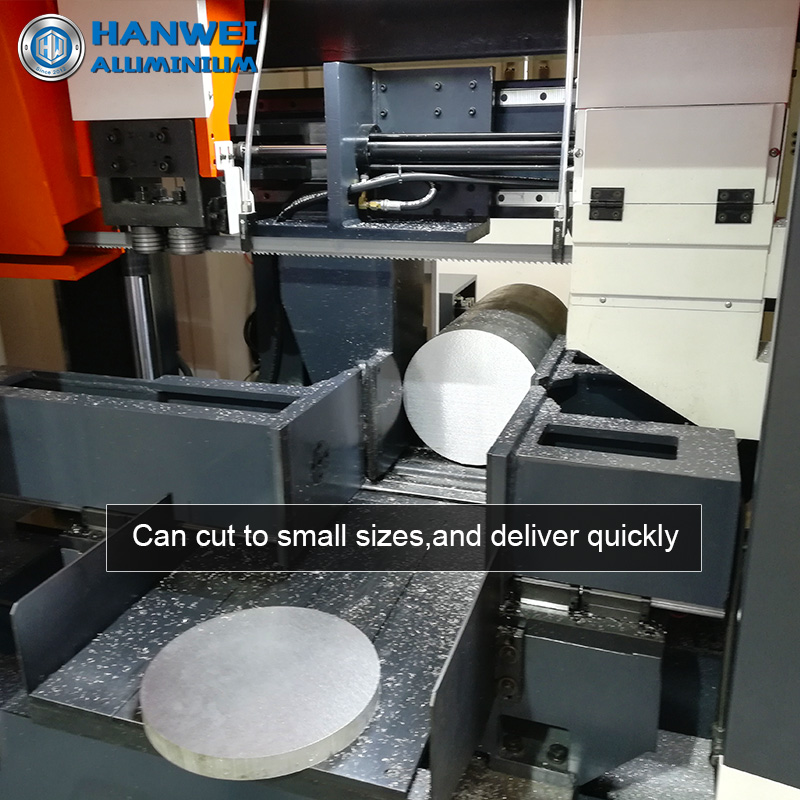

◆LENGTH: 3000mm, Cut to short size ( φ≥ 30mm )

◆OTHERS: Material traceability, Mass-stock，Fast shippment

Introduction

Chemical composition of 5052 aluminum alloy

Aluminum (Al): balance
Magnesium (Mg): 2.2-2.8%
Chromium (Cr): 0.15-0.35%
Manganese (Mn): 0.1% max
Copper (Cu): 0.1% max
Iron (Fe): 0.4% max
Zinc (Zn): 0.1% max
Silicon (Si): 0.25% max
Titanium (Ti): 0.15% max
Other elements: Each 0.05% max, Total 0.1% max

Typical mechanical properties of 5052 H112 aluminum

Grade	Temper	Tensile Strength	Yield strength	Elongation	Hardness
5052	H112	195	90	12	48

(The values are typical or min values,for reference only.)

5052 aluminum round bar application

5052 aluminum alloy has good formability, weldability, and corrosion resistance，good performance for anodizing.It is one of the most widely used aluminium.

5052 aluminum rod uses for: automobile, 3C products, computer bracket, building curtain wall panel, suitcase, cans/covers, shutters, rod boxes, aluminum furniture,flange material, GIS shell, yacht, underwear mould,tooling, air storage, precision machining, etc.
