5083 Super Flat Milled Aluminum Plate

Chemical composition of 5083 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.4%
●Ferrum (Fe): 0.4% max
●Copper (Cu): 0.1%
●Manganese (Mn): 0.4-1.0% max
●Magnesium (Mg): 4.0-4.9%
●Zinc (Zn): 0.25% max
●Titanium (Ti): 0.15% max
●Other elements: Each 0.05% max, Total 0.15% max

Typical mechanical properties of 5083 O aluminum

●Tensile strength: 275-350 MPa
●Yield strength: 125 MPa
●Elongation: 12%
●Hardness (Brinell): 87HB

5083 aluminum sheet plate application

5083 aluminum plate has high strength, corrosion resistance and light weight. The content of magnesium in the trace elements of 5083 is higher. In the non-heat treatment alloy, the hardness is higher. Good seawater resistance and low temperature, suitable for welding structures with high corrosion resistance.

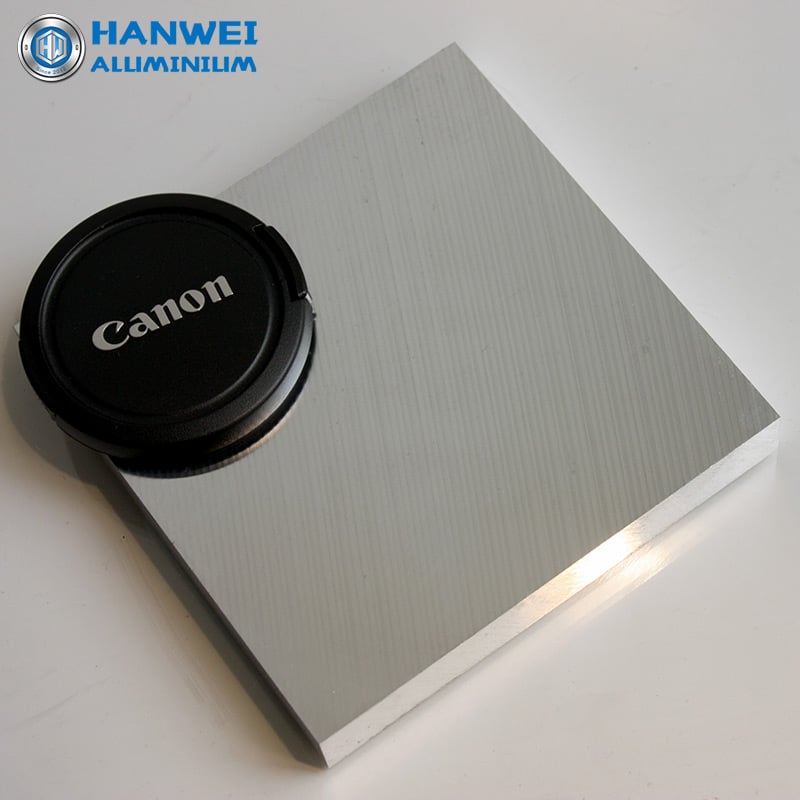

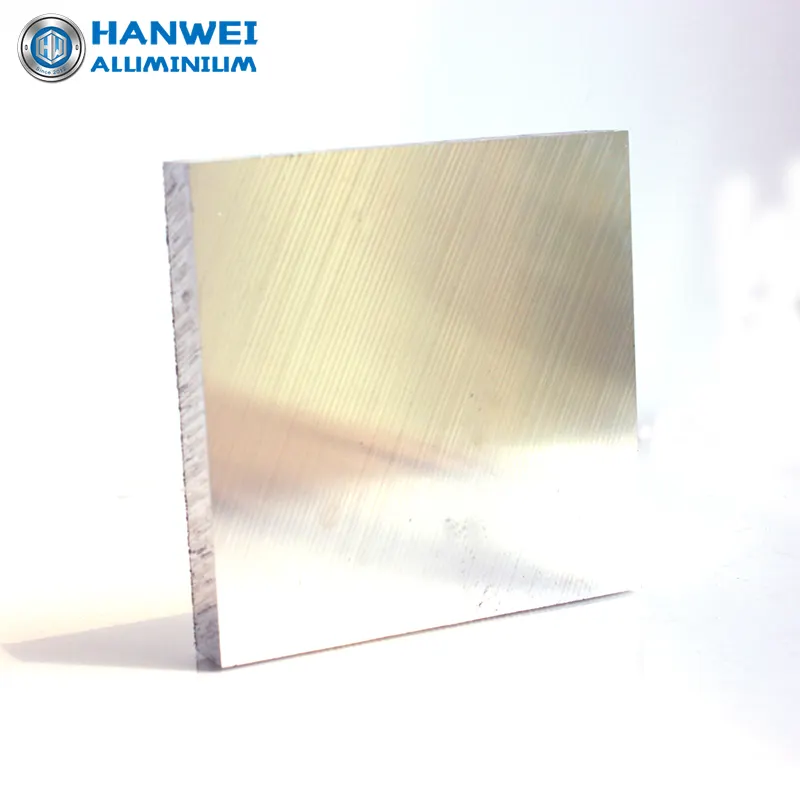

Advantage 5083 Super Flat Milled Aluminum Plate：

This surface is milling surface, so the flatness is higher than ordinary aluminum plate, less than 0.1mm per square meter, suitable for products with higher flatness requirements.
